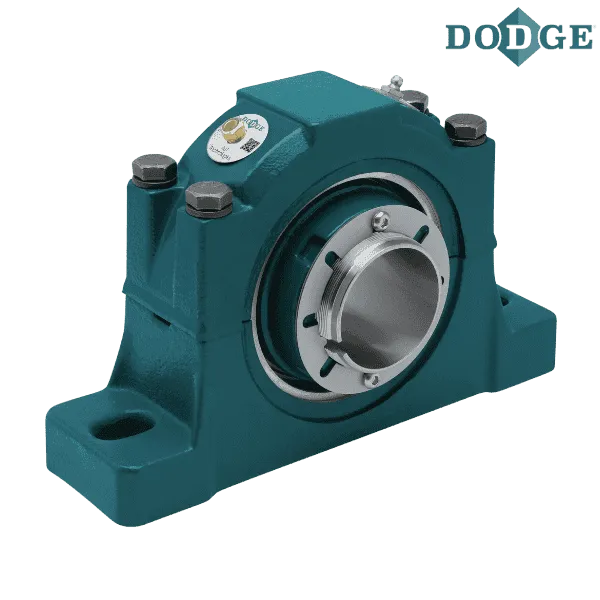

Brand - DODGE
Item Number - 037856 DODGE - P4B536-ISAF-607RE
Category - IMPERIAL ISAF 4-Bolt with Trident Seal (Expansion)
Type - Push-Pull Adapter
Bearing - 22236
Shaft Size (inch) - 6.4375
Part Name - P4B536-ISAF-607RE
SAF Series - 536
Length Through Bore (A) inch - 7.39
Overall Length (B) inch - 26.75
Width (C) inch - 7.13
Bolt to Bolt Minimum Distance (D min) inch - 20.88
Bolt to Bolt Maximum Distance (D max) inch - 23.63
E (inch) - 4.63
F-Bolt Diameter (inch) - 1
G (inch) - 2.5
H (inch) - 3
Overall Height (J) inch - 15.13
L (inch) - 11.41
Base to Center Height (M) inch - 7.5
P (inch) - 17.38
S (inch) - 4.34
Expansion (X) inch - 0.375
Y (inch) - 0.04
Z (inch) - 7.89
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P4B - Pillow Block 4 Bolt Base
5XX - for interchangeable SAF style housings
ISAF - IMPERIAL SAF
R - TRIDENT Triple Lip Contact Seal
E - Expansion

** Images are representation purposes only
